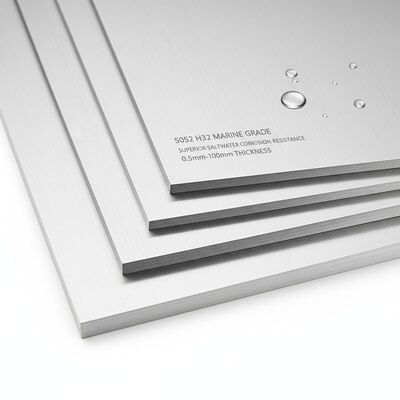

5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
| Lieu d'origine | Shandong, Chine |
|---|---|
| Nom de marque | Hongtu |
| Certification | ISO 9001:2015, SGS, DNV, ABS (upon request) |
| Numéro de modèle | 5052-H32 |
| Quantité de commande min | 500KG |
| Prix | USD 2.6-3.8 / kg |
| Détails d'emballage | Papier antirouille entrelacé, film PE enveloppé, palette en bois de qualité export avec cerclage en |
| Délai de livraison | 3-5 jours ouvrables pour le stock, 10-20 jours pour la production |
| Conditions de paiement | T/T, L/C, PayPal, Western Union |
| Capacité d'approvisionnement | 3000 tonnes par mois |
Détails sur le produit
| Alliage | 5052 | Caractère | H32, H34, H36, H38, H112 |
|---|---|---|---|
| Épaisseur | 0.5 mm - 100 mm | Largeur | 1000mm, 1250mm, 1500mm, 2000mm |
| Longueur | 2000 mm, 2440 mm, 3000 mm, 6000 mm ou personnalisé | Standard | ASTM B209, EN 485, GB/T 3880 |
| Finition de surface | Finition de moulin, anodisée, enduite, gaufrée | Résistance à la traction | 210 - 260 MPa |
| Limite d'élasticité | MPA du ≥ 160 | Élongation | ≥7-12% |
| Application | Coques marines, ponts de bateaux, réservoirs de carburant, appareils sous pression | ||
| Mettre en évidence | 5052 H32 Marine Aluminum Sheet,Boat Building Aluminum Plate 5052,Corrosion Resistant Marine Grade Alloy |
||
Description de produit
5052 H32 Marine Grade Aluminum Alloy Sheet Plate
The 5052 H32 aluminum alloy sheet is the industry-standard marine grade aluminum, offering the highest strength in the non-heat-treatable 5000 series. With exceptional corrosion resistance in saltwater environments and excellent formability, it is the preferred choice for boat building, marine structures, and fuel tank fabrication.
Key Features
- Superior Saltwater Corrosion Resistance: High magnesium content (2.2-2.8%) provides outstanding protection against marine atmospheric corrosion
- Excellent Weldability: Compatible with TIG, MIG and resistance welding with minimal strength loss in heat-affected zone
- Good Formability: H32 temper offers an optimal balance of strength and workability for bending, deep drawing and stamping
- High Fatigue Strength: Ideal for dynamically loaded marine structures subject to wave action
- Non-Heat-Treatable: Strain-hardened temper provides consistent properties without heat treatment distortion
Chemical Composition (Weight %)
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Al |
|---|---|---|---|---|---|---|---|---|
| Min | - | - | - | - | 2.2 | 0.15 | - | Remainder |
| Max | 0.25 | 0.40 | 0.10 | 0.10 | 2.8 | 0.35 | 0.10 |
Mechanical Properties (H32 Temper)
| Property | Value |
|---|---|
| Tensile Strength | 210 - 260 MPa |
| Yield Strength | ≥ 160 MPa |
| Elongation | ≥ 7% (1.0-6.0mm), ≥ 12% (>6.0mm) |
| Hardness (Brinell) | 60 HB |
| Density | 2.68 g/cm³ |
Available Dimensions
| Parameter | Range |
|---|---|
| Thickness | 0.5mm - 100mm |
| Width | 1000mm - 2000mm |
| Length | 2000mm - 6000mm or Custom |
| Temper | H32, H34, H36, H38, H112, O |
Applications
- Boat hulls, decks and superstructures
- Marine fuel tanks and water tanks
- Dock ramps and floating platforms
- Automotive fuel tanks and panels
- Pressure vessels and chemical storage tanks
- Electronic equipment chassis and panels
Our Advantages
- Marine Certification Available: DNV, ABS and BV marine classification society certification upon request
- Consistent Quality: ISO 9001:2015 certified production with full spectrographic and mechanical testing
- Flexible Sourcing: Trial orders from 500 kg, full container loads available
- Professional Export Packaging: Engineered to prevent moisture and physical damage during ocean freight
- Inventory Advantage: Large stock of standard sizes for quick delivery within 3-5 working days
Inquire now for a tailored quotation, free sample, and expert technical support on 5052 H32 marine grade aluminum sheets.
